Welding current range (Amp): 10 – 200A
Duty Cycle (Amp) (DECA use at 20°C): (200A – 60%) – (160A – 80%)
Duty Cycle (Amp) (EN 60974-1 40°C): (200A – 15%) – (130A – 60%)
Open circuit voltage (Volt): 92V
ELETCTRODES : :
Rutile: Ø 1,6 – 5,0 mm
Basic: Ø 2,0 – 5,0 mm
TIG: Ø 1,6 – 4,0 mm
Alimentation volt (50/60 Hz): 1 Ph x 230V
Installation Power (Kw): 6,5 KW
Fuse (Amp): 25A
Socket: 25 mm2
Weight kg : 5.3
Dimensions (mm): 370 x 160 x 274
FEATURES: :

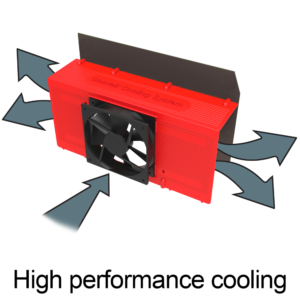

Fan cooled: Turbo Convair System
Hot start: yes
Anti-sticking: yes
Arc force: yes
TIG Scratch: yes
Thermostatic Protection: yes
Generator: +/- 30%
LOGISTIC INFO CODE: 285900
Barcode: 8011399032147
Package dimension, Wid.-Dep.-Height (mm): 420 x 170 x 300
Package weight kg: 5.8
Pieces for pallet: 60
HS code: 85153918
LOGISTIC INFO CODE: 285980
Barcode: 8011399031836
Package dimension, Wid.-Dep.-Height (mm): 490 x 200 x 395
Package weight kg: 9,2
Pieces for pallet: 28
HS code: 85153918
